Seismo V24
Unleash peak DTF performance with the Seismo V24! This automated powder shaker and dryer integrates seamlessly with Prestige XL2 and L2 DTF Printers from DTF Station. Featuring a touch screen display and vacuum platform, the V24 ensures even powder application and flawless curing for vibrant direct-to-film prints on a variety of materials.
Features:

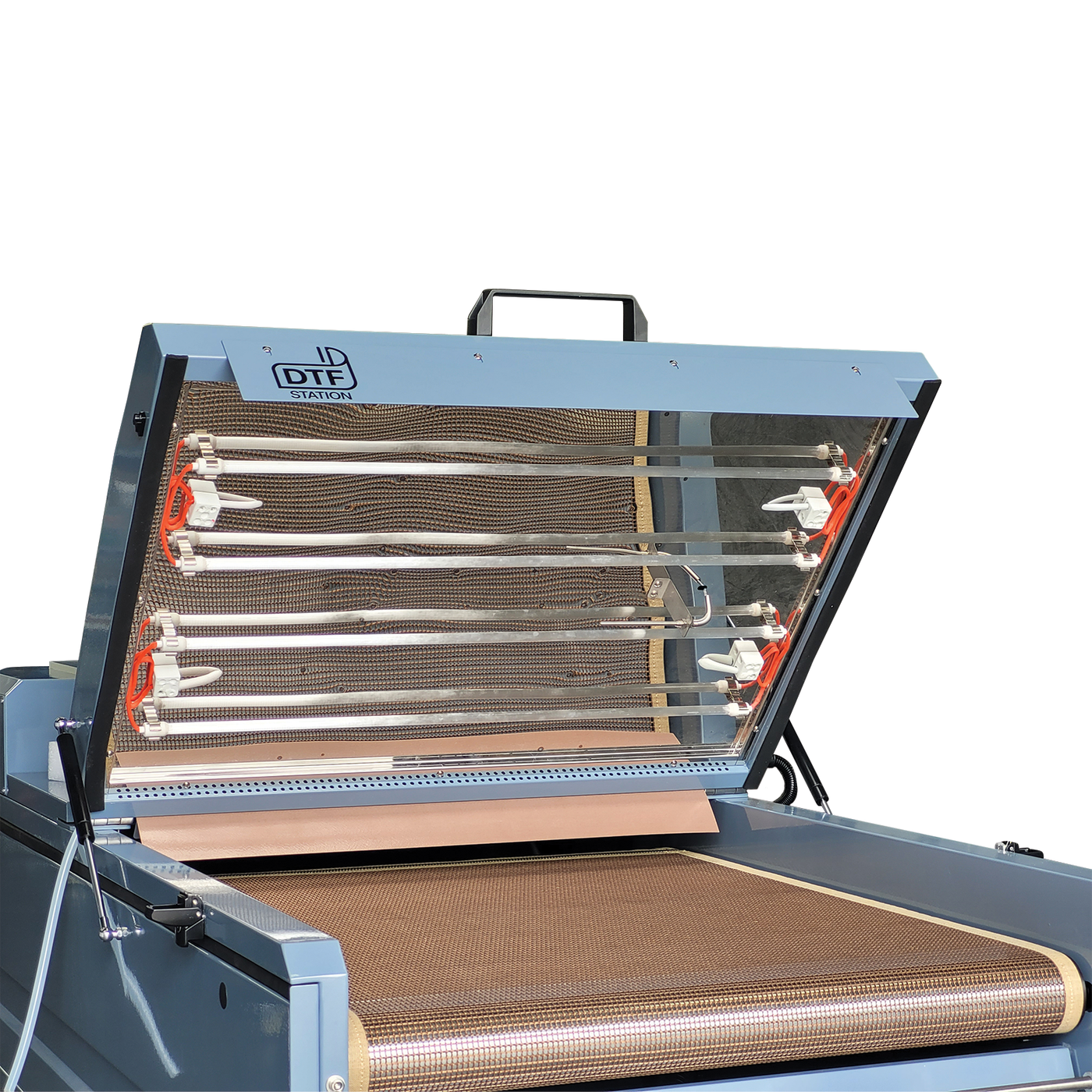

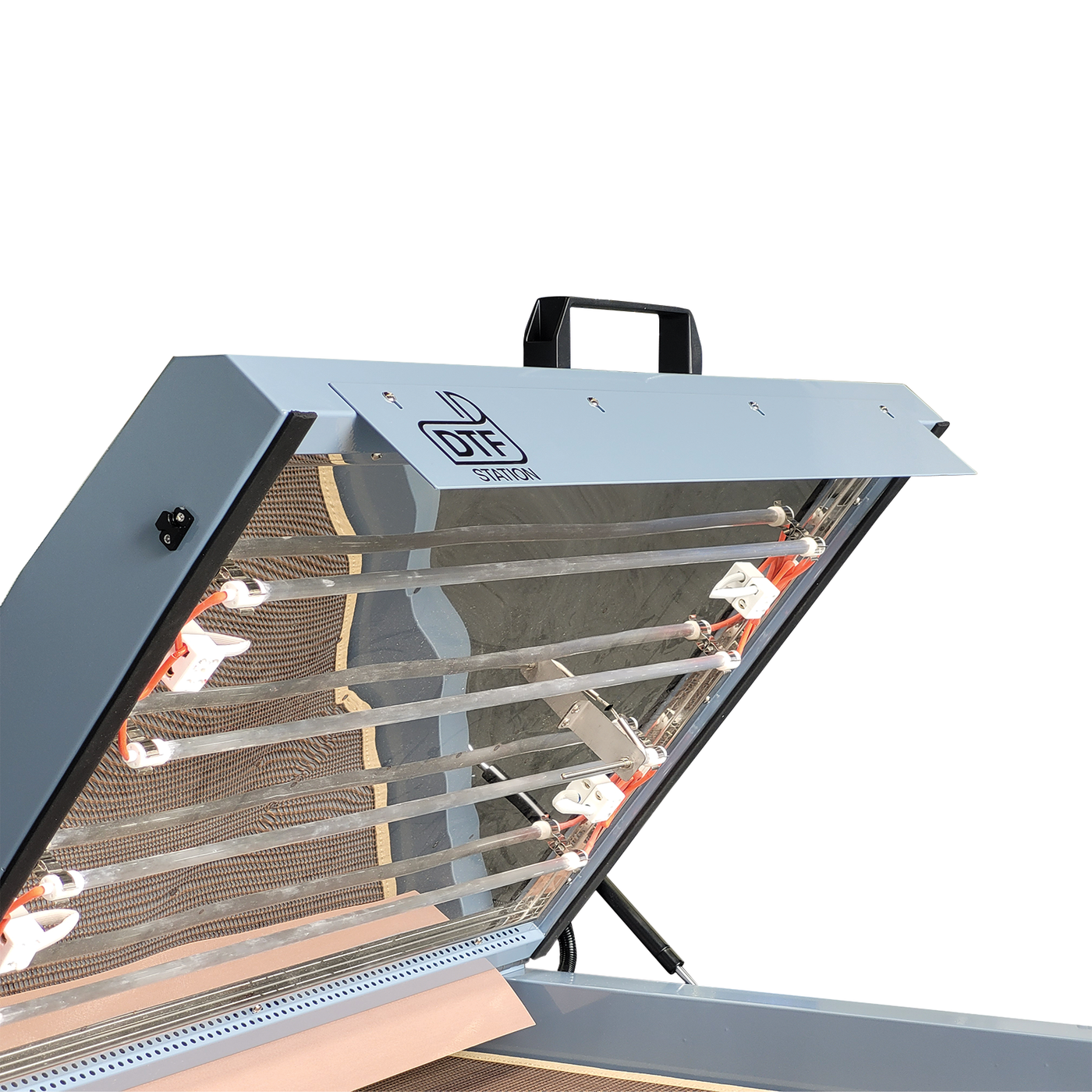

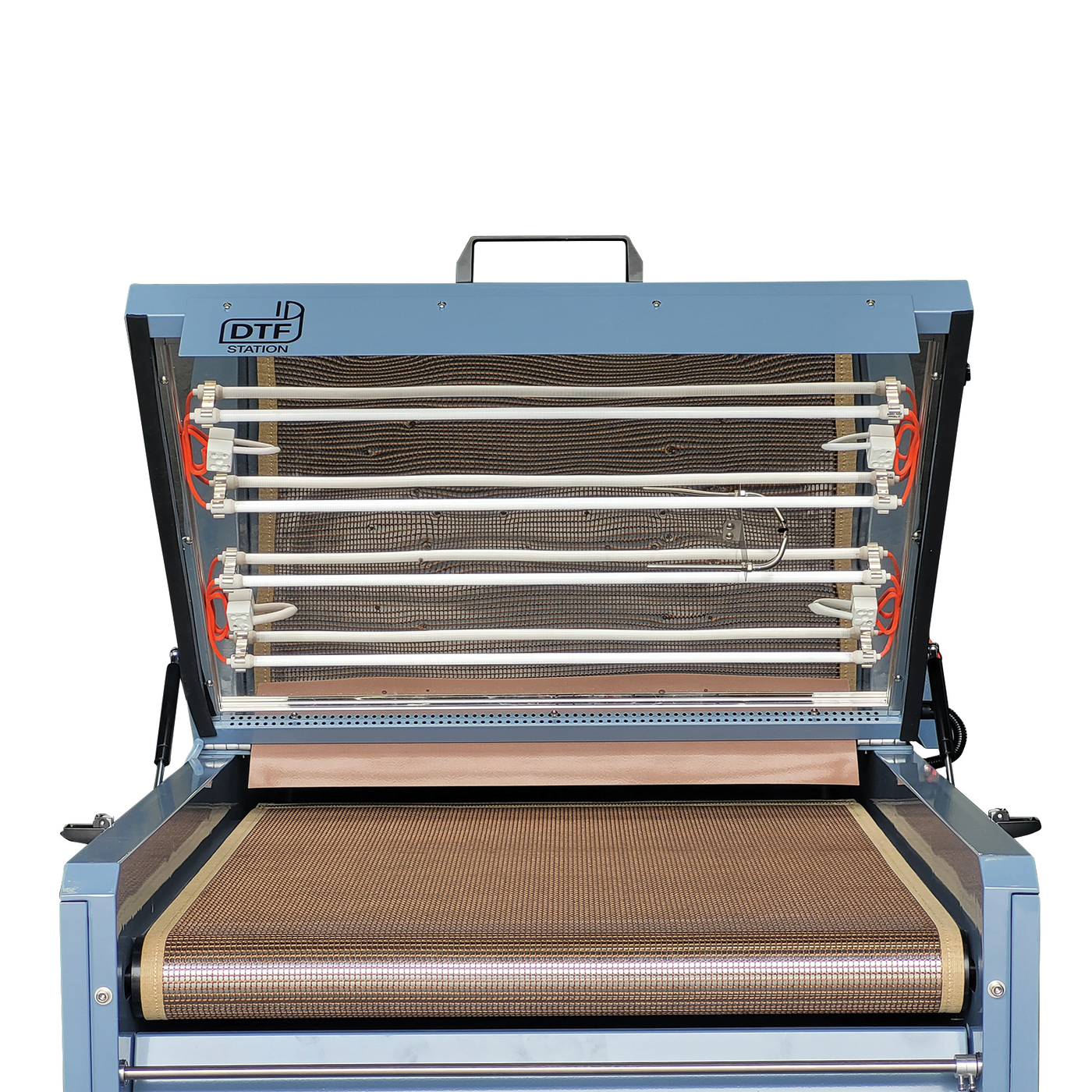

- With a warming inlet platform, automatic powder dispenser, powder removal paddle, 4 bulb tunnel dryer, and roll up at the end.
- Color reproduction is improved and protected by infrared drying and heating.

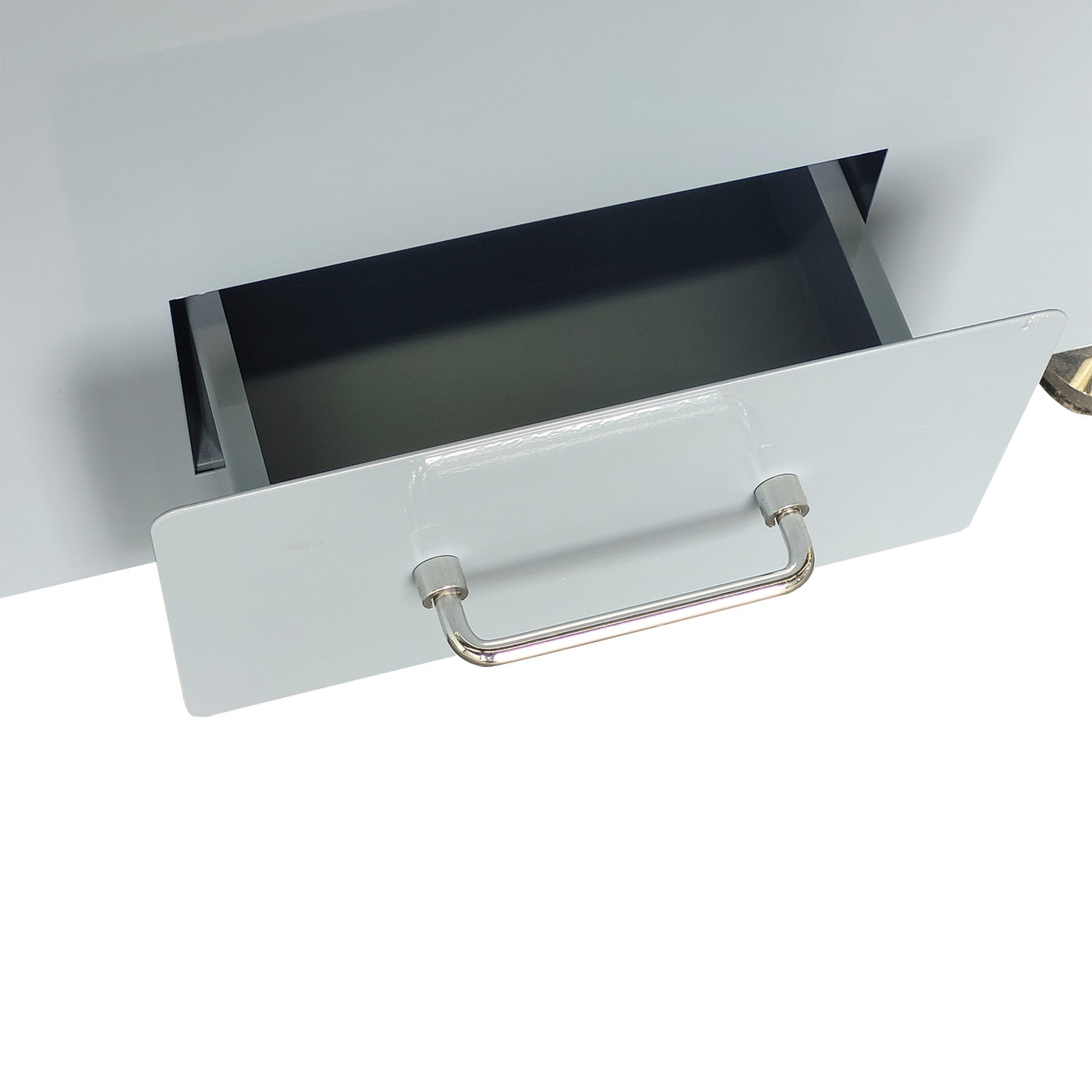

- Customized powder recycling drawer boosts efficiency.
- Control of shake powder, dusting, and curing temperature via PID.
- Powder is evenly distributed thanks to automatic powder feeding.
- The vacuum absorption conveying platform keeps the printing material secure, preventing bulging, run-offs, and media waste.
Benefits:

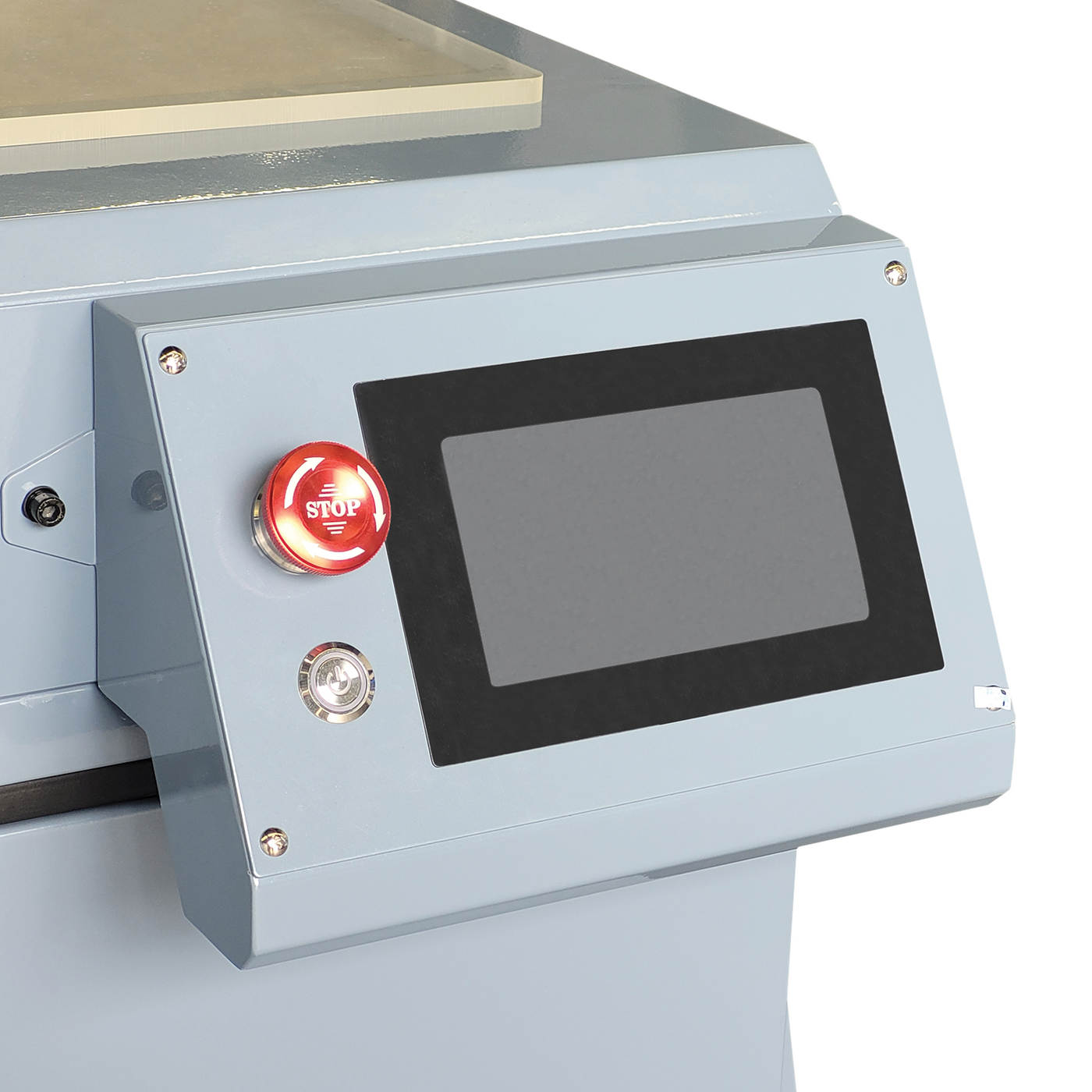

- Simple to use with a touch screen display controller.
- This all-in-one unit saves time, effort, and money by evenly spreading and melting the required amount of adhesive material directly onto your printed image.
Specifications:
| Maximum Media Width |
23.6" |
| Functions |
Shake powder control, dusting control, and curing temperature PID setting |
| Heating Element |
Quartz infrared heat drying tube |
| Rewinding Function |
Automatic induction rewinding |
| Heating and Drying Mode |
Front guide plate heating, upper drying curing |
| Cooling Mode |
9 fun air cooling (2 raw) |
| Machine Size |
76.9in x 39.5in x 43in |
| Power Shaker and Dryer Weight |
528lbs |
| Packaging Size |
70.5in x 44.1in x 44.5in |
| Packaging Weight |
638lbs |
| Power Supply |
220V, 50hz / 60hz, 1 phase |
Applicable Industries:
- All Color T-Shirt
- Sweater / Hoodie
- Jersey
- Canvas Bag / Cushion
- Jeans / Denim Cloth
- Leather
- Shoes
- Pants / Trousers
- Cap / Mask
Compatible With
