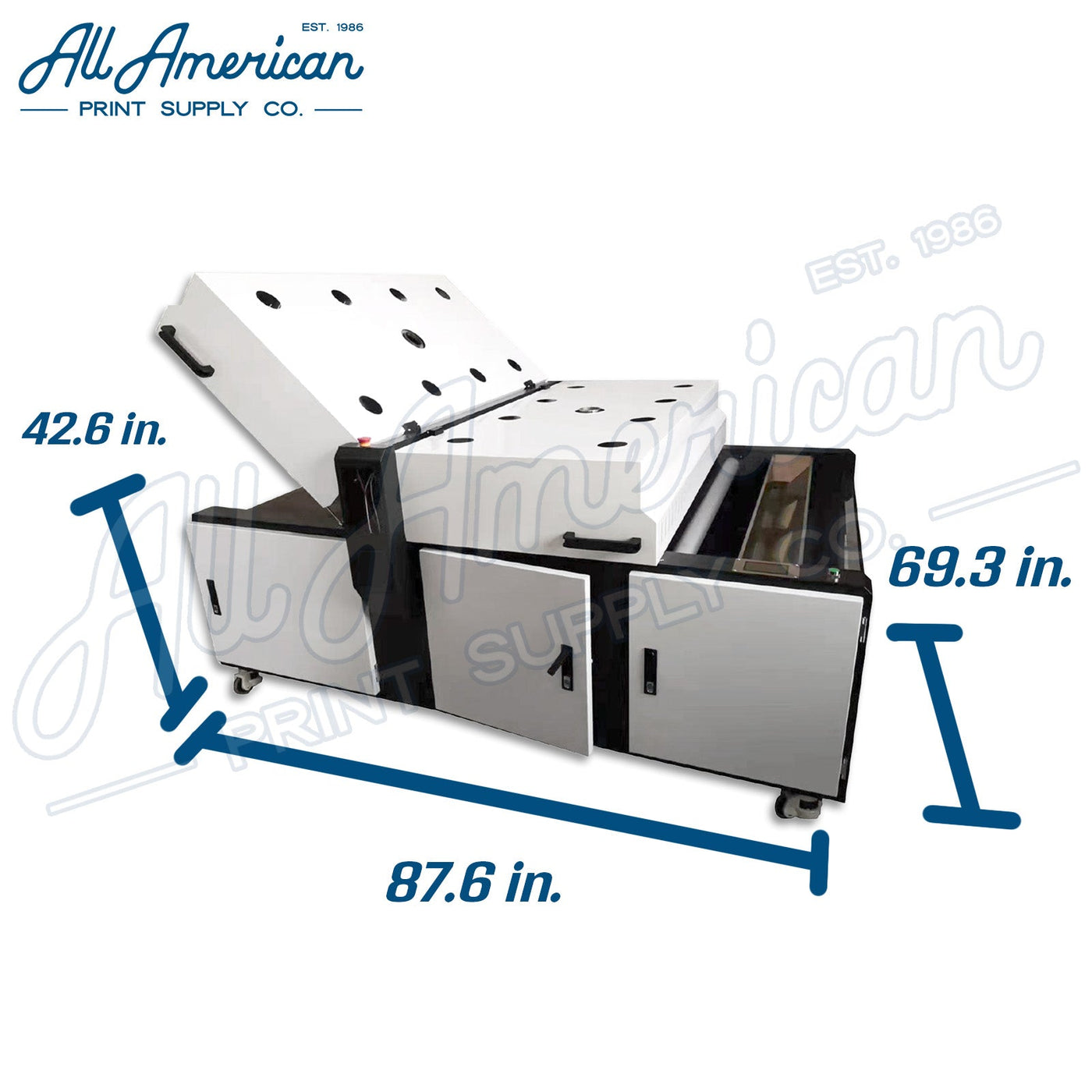

DTF Powder Applicator Dryer Direct to Film measurements

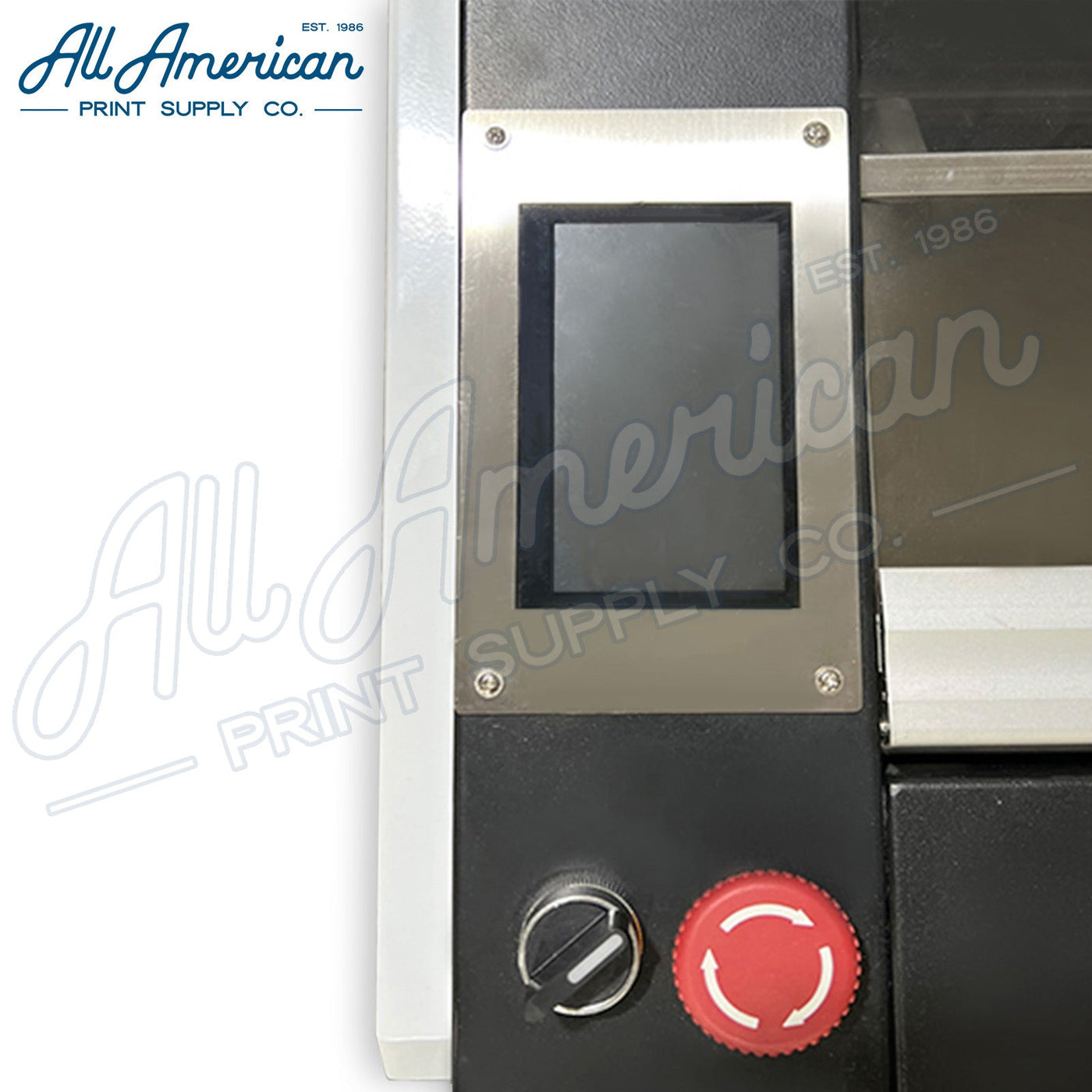

DTF Powder Applicator Dryer Direct to Film console.
DTF Powder Applicator Dryer Direct to Film inside bay
DTF Powder Applicator Dryer Direct to Film Exhaust Fan

Seismo A51 DTF Powder Shaker and Dryer

  • DTF Station
$19,435.00 $19,995.00 $19,995.00 /
Subscription

Unleash DTF Printing Power with Seismo A51 DTF Powder Shaker and Dryer!

Dominate your DTF workflows with the Seismo A51, designed for 51-inch DTF rolls and roll-to-roll printers. Its dual-length heater and intuitive LCD touchscreen offer blazing speed and user-friendly control. Enjoy a clean environment with built-in HEPA filters, optimized power usage with a film detector, and consistent heating with an air vacuum conveyor. The advanced take-up system guarantees perfectly rolled DTF prints, making the Seismo A51 an essential tool for any DTF business.

Seismo Shaker and Dryer Maintenance Chart

Features:

  • Dual Length Heater: Longer heater/ dryer than the other dtf powder shaker and dryer combo to accommodate Faster DTF roll to roll printers.
  • Advanced Built-in HEPA 2 Layer Dual Air Filters filter out any fumes from dtf powder. low maintenance, easy to replace filters, and keep the environment clean and safe.
  • Advanced Film Detector: With the effective film sensor, it automatics turns off and on the power station, and heating elements which results in a lower power requirement of 220v 28 Amp
  • Advanced powder ventilation within the powder station: heating fans help reduce any powder build-up in the powdering station, less maintenance
  • Air vacuum conveyor system: there’s an air vacuum on the front and end of the conveyor to keep the films from slipping/ moving, it aligns the dtf films to get even heating throughout the heater/dryer.
  • Advanced Take-Up System: Additional tension bar to roll up the finished dtf films better and compact as needed
  • LCD Touch Screen: Easy to monitor and control

Warranty: 1 yr warranty on all parts excluding air filter/ purification system (regular maintenance required)

Actual Dimensions:  87.59" x 69.29" x 42.51"

Specifications:

Power 220 V / 6KW / 28 Amps
Powder Shaking Method
Motor vibration, automatic powder return-free
Heating Method

Back & front baking - fast, constant heating

Media Take-Up & Feeding Method
Constant tension automatic induction system
Operation Mode Manual/Auto control
Mesh Belt Drum suction operation mesh belt
Automatic Deceleration of Film Cutting Prevent deformation of heating film
Method of Dusting Constant weight automatic sensing
Packaging Weight

881.849 lbs

Machine Size (LxWxH)
93" x 74" x 37"
Packing Size (LxWxH) 98" x 78.5" x 40.25"
Configuration With double All-in-one smoke purifier
