Prisma Swing Heat Press Operation Manual
**To view various sized platens, click here**
You might be wondering What's the best DTF curing method for your business? sure there are a couple but the very best might surprise you!

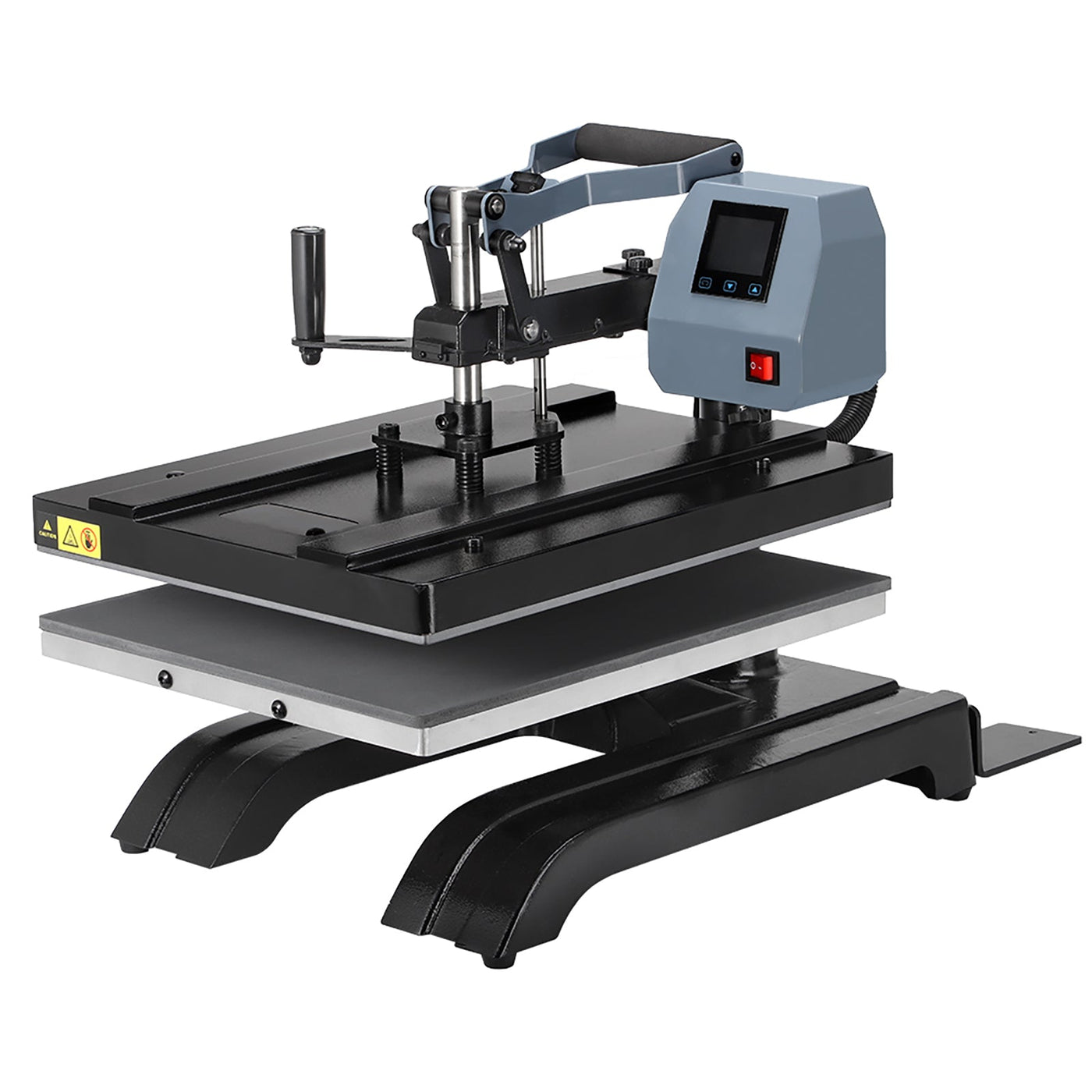

The Prisma Swing Heat Press was designed with a swing away design and a lighter weight, but with higher pressure to be used with all types of transfers, including dye sublimation materials, laser transfer paper, and DTF film.
Although the design of the press is common, the Prisma Swing Heat Press comes with a patented Ramlock system. This includes a wide space at the bottom for easier lay-in and take-out of your platens.
Don't stress about your heat press giving up on you! Stay in the know with the latest maintenance tips for your heat press machine here.
Features:

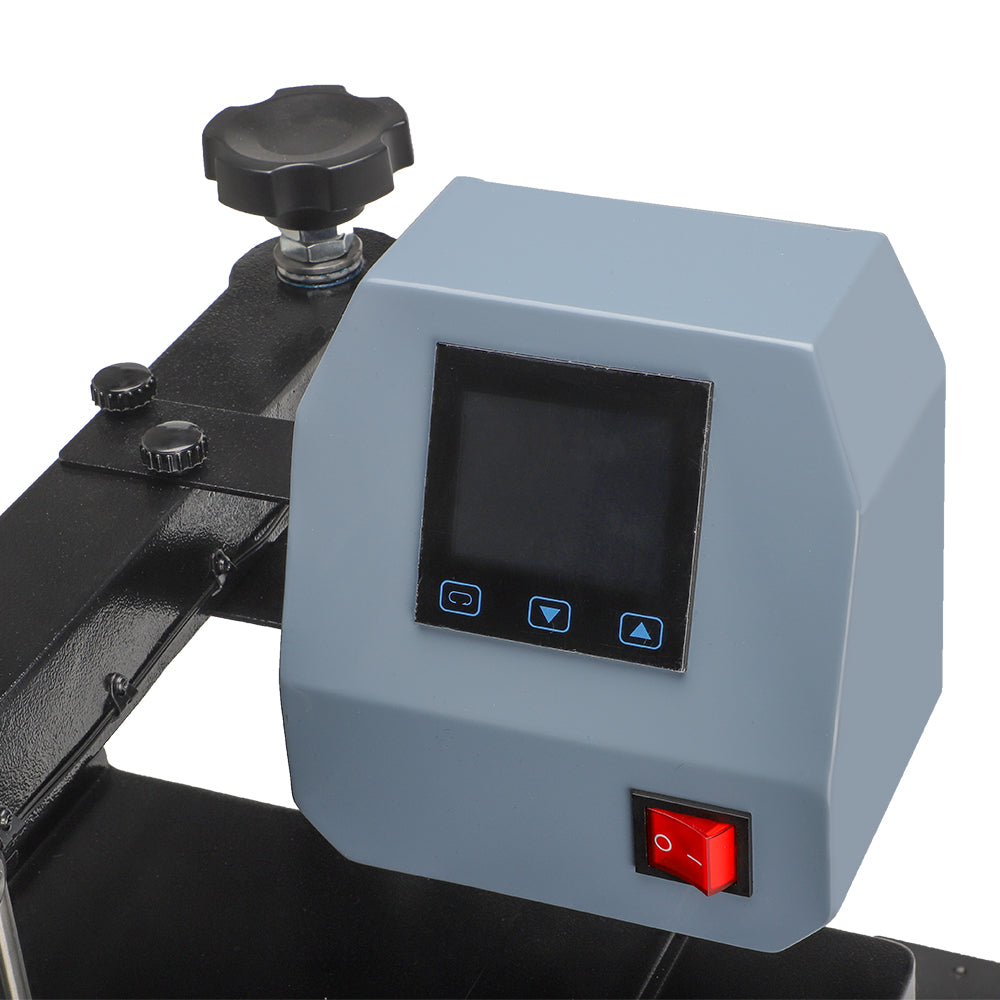

- Interchangeable Control Box: With a quality aviation connector, the control box can be taken off and put on easily for quick and easy maintenance.

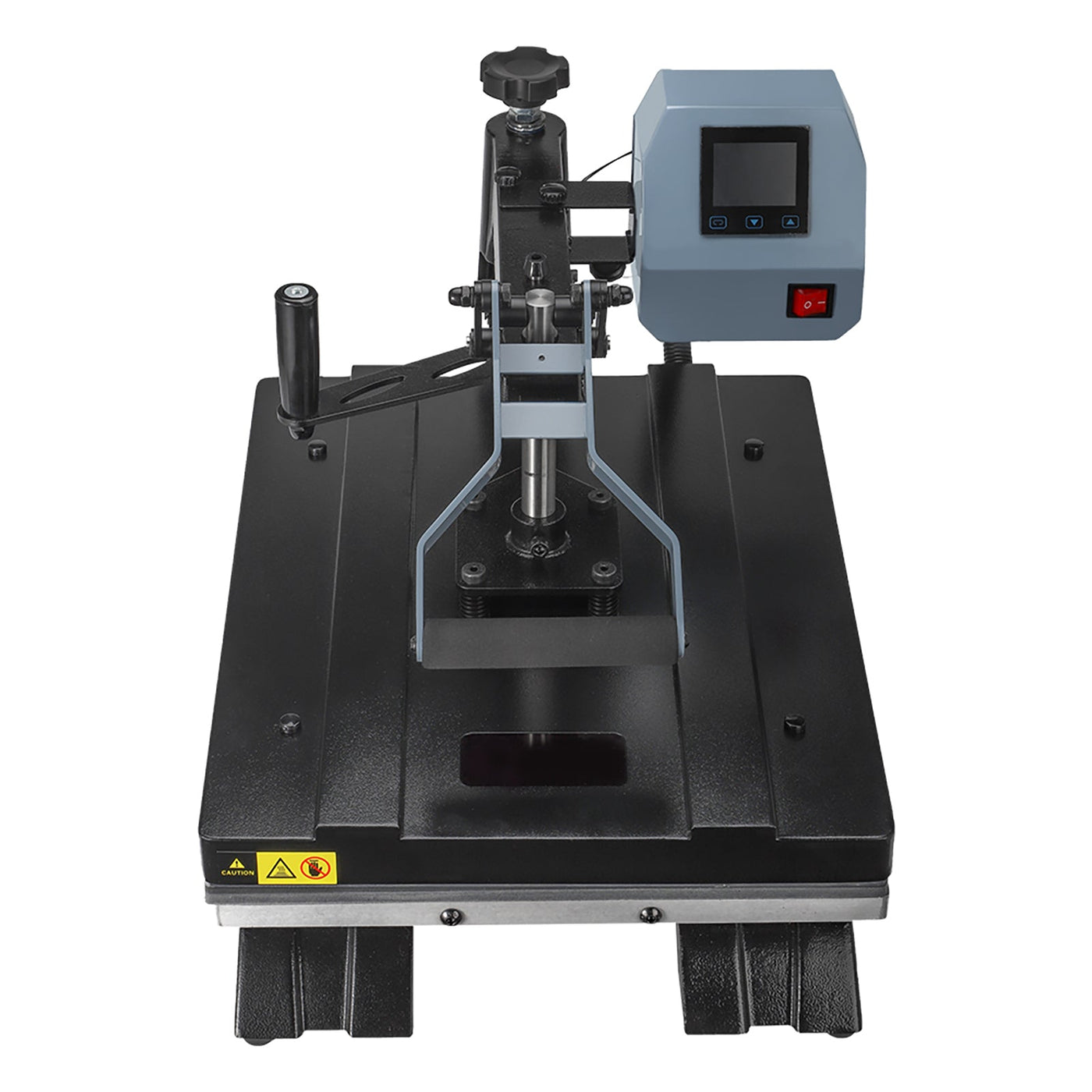

- Swing Away Design: The swing-away design gives you completely unobstructed access to the lower platen while working. Load garments and place transfers without hassle.
- Dressable Lower Platen: The specially designed base allows users to dress garments over the lower platen without stretching them out. Simply load the shirt onto the platen, and feed the bottom of the garment through the clearance underneath the lower platen.
- "RAMLOCK" Quick Change System: With this patented system, users can change multiple lower platens with different sizes easily.
Specifications:
| Platen Size |
16" x 20"（406 x 508mm） |
| Power(120volt) |
1800W 16.4A |
| Pressure Display |
No |
| Auto-open/Manual |
Manual |
| Slide-out Lower Platen |
No |
| Temperature Range |
Max.221℃/430°F |
| Heating Up Time |
180℃/20minutes |
| Time Range |
0~999S |
| Way to Change Lower Platen |
"Ramlock" quick change system |
| Machine Size |
64*43*53cm |
| Packing Size |
73*49*56cm |
| Packing Weight |
46kg |
| Net Weight |
42kg |
| Certificate |
CE, FCC |
| Warranty |
1 year on whole machine |
